Storage tanks
to API 650 & 620.

Sulfur Tank (IBR) (1)

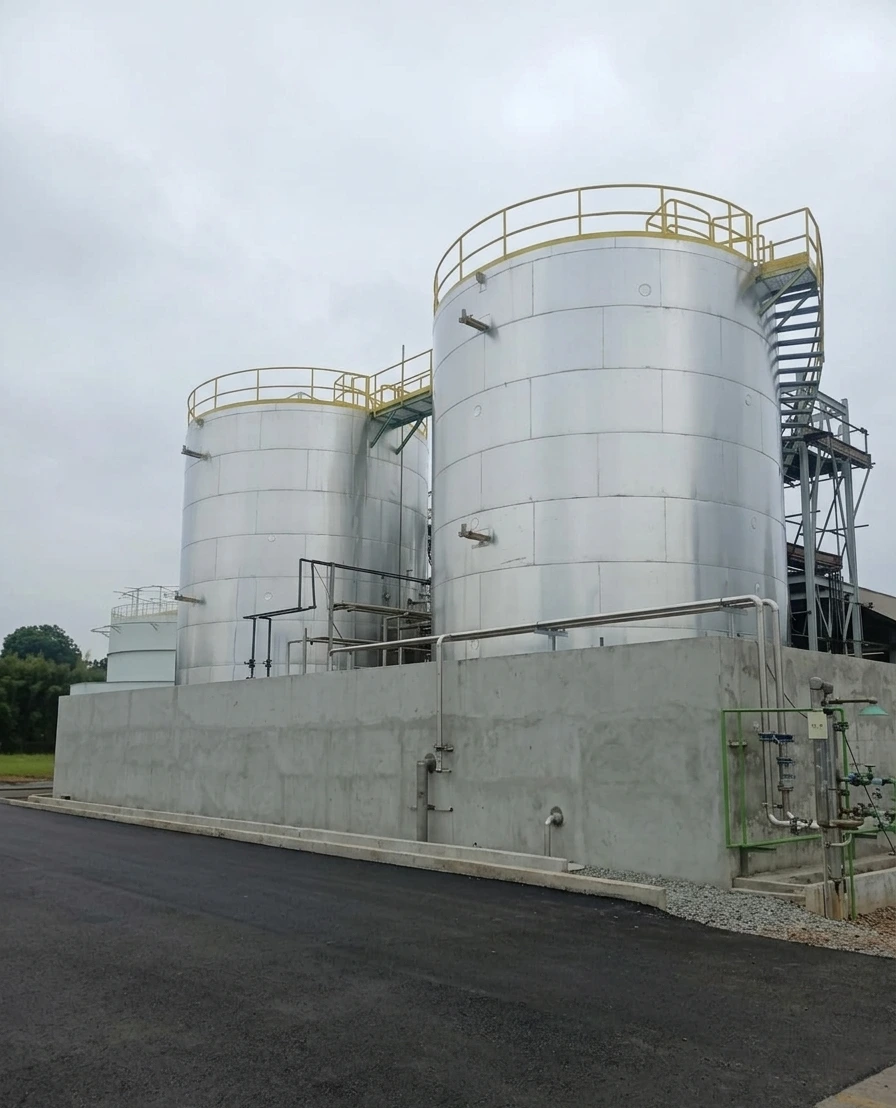

SULFUR TANK CAP 617 M3

ID 7000 x 8979 mm Ht

  • Customer
  • PT. Indo Bharat Rayon
  • Certification
  • Depnaker
  • Year
  • 2023
PPE (1)

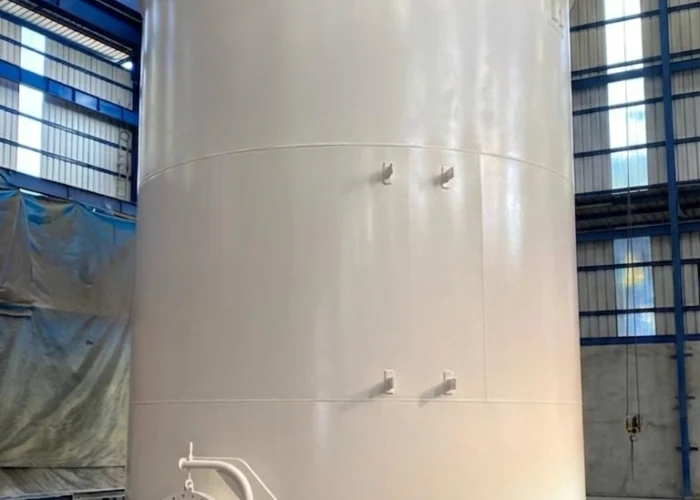

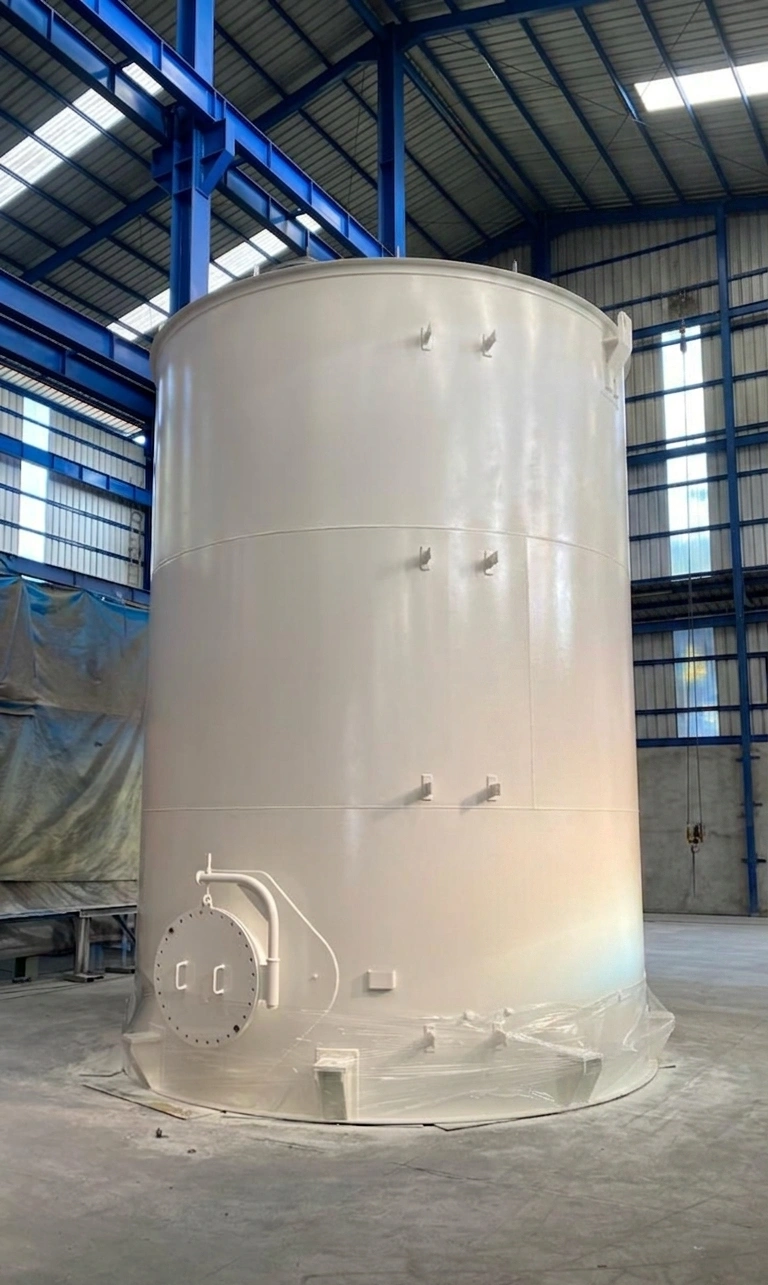

CONDENSATE DAILY TANK

ID 3880 x 5488 mm S/S

  • Customer
  • PT. Process Pacific Engineering
  • Project
  • KSO ENP – EAJ Project LPG Plant Cilamaya (40 MMSCFD)
  • Certification
  • Migas
  • Year
  • 2025
600T (IBR)

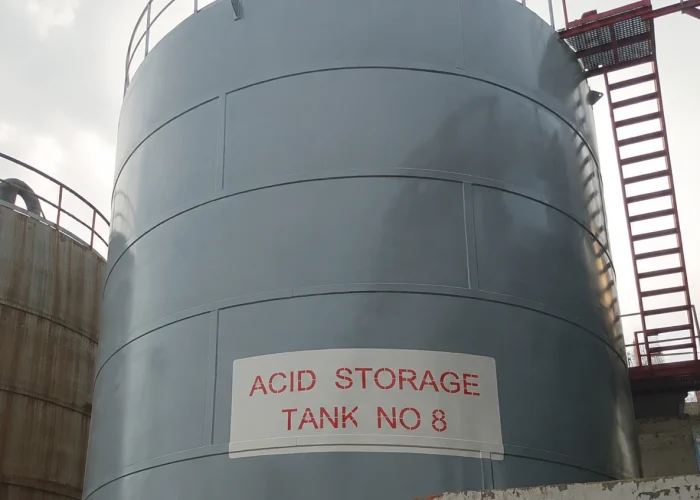

ACID STORAGE TANK 600T

ID 7670 x 8210 HOS

  • Customer
  • PT. Indo Bharat Rayon
  • Certification
  • Depnaker
  • Year
  • 2025
  • Configurations

What we build.

Stainless

SS304/316 tanks for chemicals, food-grade, and corrosive service.

Water / Fire Water

Potable, process, and dedicated fire-water service with NFPA-compatible internals.

Chemical Storage

Lined or alloy tanks for aggressive media; vented to client process.

LPG Bullets

Horizontal pressure-rated bullets for LPG and light hydrocarbon storage.

Cryogenic (API 620)

Low-temperature service per API 620 with insulated outer shell.

  • Materials & welding

Materials

  • Carbon — SA-283 Gr.C, SA-516 Gr.70
  • Stainless — SA-240 304 / 316
  • Duplex — S31803 for chloride service
  • Internal lining — epoxy, rubber, or glass-flake per service
  • External multi-coat protective paint
  • Cathodic protection — sacrificial anode or impressed current
  • Testing & documentation

Witnessed. Documented.

01

Hydrotest

Full hydrotest with foundation settlement survey per API 650 Annex B.

02

Calibration

Strapping and capacity calibration to API 2550 / ISO 7507.

03

API 653 inspection

In-service inspection and repair planning per API 653.

04

Vacuum box

Vacuum-box weld testing of bottom plates and shell-to-bottom seams.
